Filters
A range of filters can be used with Asta Linear® profiles to dramatically change the colour of the LED strip, from white to red for example, or to more subtly alter the colour temperature of the LED. The filters are cut to the required width and length then simply slid behind the profile diffuser or lens.
-
Slim Profile LED Strip
Standard or high brightness LED strips for use in Asta Linear® profiles with a maximum width of 19mm. Colour temperatures include 2700K, 3000K, 3700K, 4100K, 5300K and 6500K. In addition, RGB LEDs and 90+ CRI LEDs in 3100K, 4100K and 5200K colour temperatures are available. The LED strip for use in slim Asta Linear® profiles is identical to that used within Applelec's LED Light Sheet allowing coordinated schemes to be created.
-
Connect
All Asta Linear® profiles are fitted with the Connect wiring system. Suitable for simple or complex wiring solutions, Connect features a range of component parts that connect and disconnect with ease. Splitters include a 2-way splitter, 6-way splitter and T-splitter which can be attached to any wire, anywhere in the system using a crimping tool. Extension wires in 500mm, 1000mm, 1500mm and 2000mm lengths can be added to the maximum length of 5000mm (up to 5A).
-
35W Power Supply
The Meanwell 35W power supply features a constant voltage design, universal AC input and cooling by free air convection. With a fully isolated plastic case, the power supply carries an IP67 rating which ensures it is suitable for interior and exterior applications. The unit can withstand 300VAC surge input for five seconds and is protected from short circuit, overload and over voltage.
-
60W Power Supply
The Meanwell 60W power supply features a constant voltage design, universal AC input and cooling by free air convection. With a fully isolated plastic case, the power supply carries an IP67 rating which ensures it is suitable for interior and exterior applications. The unit can withstand 300VAC surge input for five seconds and is protected from short circuit, overload and over voltage.
-

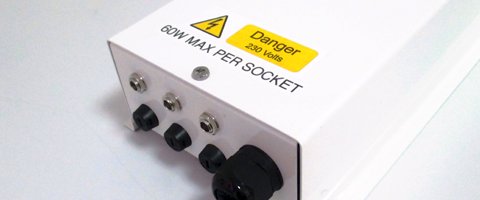

Powerbox 180
The Powerbox 180 is a pre-wired power enclosure with three fused 5A (60W) outlets, each featuring overload protectors. Fuses can be easily changed without opening the box. The Powerbox 180 features built-in active power factor correction (PFC); forced air cooling by built-in DC fan; and, built-in fan speed control. The vented enclosure measures: (L x W x H) 300mm x 149mm x 70mm.
-

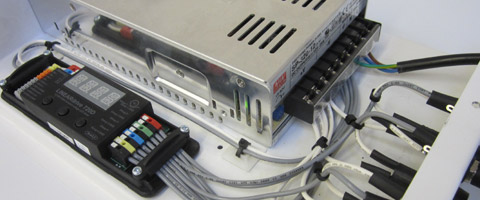

Powerbox 240
The Powerbox 240 is a pre-wired power enclosure with four fused 5A (60W) outlets, each featuring overload protectors. Fuses can be easily changed without opening the box. The Powerbox 240 features built-in active power factor correction (PFC); forced air cooling by built-in DC fan; and, built-in fan speed control. The system is dimmable by DMX, Dali and 0-10V. The vented enclosure measures: (L x W x H) 310mm x 235mm x 70mm.
-
0-10V Controller
A wall mounted 0/1-10V rotary dimmer switch with push on/off function master controller. The dimmer is designed for use with single colour LED strips to adjust brightness from 1-100% using the rotary button. Input voltage is 12-24V, output 0/1-10V signal. The glass face plate is available in black or white with customisable colours optional. Face plate dimensions: (L x H x W) 86mm x 86mm x 35mm.
-
DMX Controller
A wall mounted DMX rotary dimmer switch with 256 push on/off function master controller. With 256 levels logarithmic dimming from 1-100%, adjust brightness using the rotary button. Input voltage is 12-24V, output DMX512 signal. Easy to use for dimming and switching on/off for 1-zone controlled. The glass face plate is available in black or white with customisable colours optional. Face plate dimensions: (L x H x W) 86mm x 86mm x 35mm.
-
LED Light Sheet
A flat sheet of brilliant light, Applelec's LED Light Sheet features a discreet profile and is manufactured in the UK to bespoke measurements. Created in a variety of colour temperatures or with colour-changing LEDs, units are suitable for exterior or interior installations. Running cool to touch, LED Light Sheet is ideal for displaying heat sensitive products and can be supplied with controllers to dim the unit or run colour-changing sequences.
